SJZ65/132 Extruder PVC Pipe Making Machine with 8 kg Capacity

Place of Origin : Shandong, China

Price : $20,000.00/sets >=1 sets

Applicable Industries : Hotels, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use

Showroom Location : Egypt, Turkey, Peru, Saudi Arabia, Indonesia, Russia, Thailand, UAE, South Africa, None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Type : Pipe Molding Machine

Pipe Material : PVC

Production Capacity : 1-15m/min

Voltage : 380V/3P/50HZ or as local voltage

Power : 80kw / 60kw

Dimension(L*W*H) : 26m*2m*2m

Weight : 8 kg

Warranty : 1 Year

Key Selling Points : Easy to Operate

Plastic Machine : SJSZ65 PVC Pipe Machine / Making Machine for PVC Pipe

Extruder : SJZ65/132

PVC Pipe Diameter : 75-160mm or 20-110mm

Capacity : 180kg/h - 250kg/h

Tractor speed : 0.8-15m/min

Main Motor : ximenzi

Contactor : ximenzi

Temperature Controller : oumulong

Inverter : chinese famous brand

Raw material : PVC Resin

Contact Now

Product Description

Production Process for pvc pipe line

1.(PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)

2.SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)

3.Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

Products Show

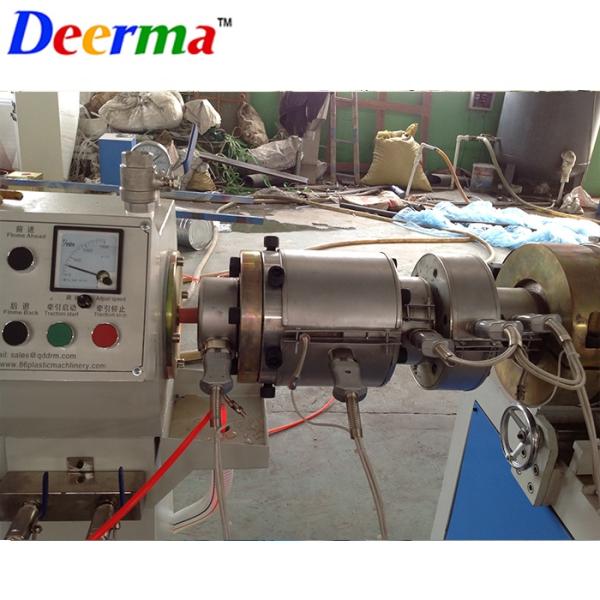

SJZ65/132 Extruder PVC Pipe Making Machine with 8 kg Capacity

PVC PIPE PRODUCTION LINE MACHINE Characteristic

Pipe range	20-63mm single	20-63mm dual	75-160mm	110-315mm	315-630mm
Extruder	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extruder power	18.5kw	37kw	37kw	55kw	110kw
Extrusion capacity	120kg/h	250kg/h	250kg/h	360kg/h	800kg/h
Max. Production speed	12m/min	10m/min	6 m/min	3 m/min	1.2m/min

SJSZ65/132 PVC Pipe Machine which can produce 75-160mm & 75-200mm & 20-110mm pvc pipe

SJZ65/132 twin screw extruder	Screw diameter	65/132mm
		Machine barrel and screw material	38CrMoAlA Nitriding treatment
		Main motor power	37KW SIEMENS BEIDE
		Contactor and breaker	Schneider or Siemens
Mould	Including	calibration sleeve
Mould		Material	Made by 40Cr. Inner surface polished
Vacuum Calibration Tank	Vacuum pump power	5.5KW
Vacuum Calibration Tank		Water pump power	4KW×2units
Haul Off (2 claws)	Motor power	2.2KW
		traction	25000N
		The range of pulling pipe diameter	75-160mm
Lift Cutter	Saw motor	2.2KW
		blower	1.5KW
		The range of cutting pipe diameter	75-160mm
Stacker	Length	6,000mm
		Control action	Pneumatic
		Uses the stainless steel work mesa, automatic rollover fell material

Packing & Details

pvc plastic pipe machine / pvc pipe production machine
1. Mold package: Wooden package.
2. Outside package: Stretch film
3. Loading QTY: 1X40HC for one production line

Our Certifications

Certification	Certified By	Certificate No.	Business Scope Expiry Dat	Expiry Date
ISO 9001:2008	Beijing Hangxie Certification Center Co., Ltd., CNAS	03413Q21640R1M	Design and Production of Single-Screw Plastic Extruders and Conical Twin-Screw Plastic Extruders	17/Sep./2013 16/Sep./2016
CE	EuropeanInspection and Certification Company S.A.	CN.CE.0680-10/10	Plastic Extrusion Machinery & SJ-30, SJ-45, SJ-65, SJ-90,SJ-120, SJ-150, SJ-180,SJ-200, SJSZ-51/105,SJSZ-65/132, SJZS-80/156, SJSZ-92/188	29/Oct./2010 28/Oct./2015
TUV	TÜV Rheinland	7467484_P+T	Production & Trade Assessment	15/Jan./2014 14/Jan./2015
Main Product Lines Verification Report	TÜV Rheinland	7467487_P+T	Main Product Lines Verification	15/Jan./2014 14/Jan./2015
SGS	SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd	QIP-ASR155278	Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine...	15/May./2015

Our Service

Execellent Service-Turnkey Project

DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

A. Free training for maintenance personnel;

B. Installation service& commissioning by porfessional;

C.The establishment of user fles, a long-term follow-up service and regular return visits;

D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.

E.Calling or Door to Door service

F.One year guarantee for whole machine

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

SJZ65/132 Extruder PVC Pipe Making Machine with 8 kg Capacity Images
