38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor

Name: 38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor
Brand: DEERMA
Price: 110 USD

Wholesale 38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor from china suppliers

Condition : New

Plastic Processed : PVC, ABS

Application : Sheet, Profile

Screw Design : Double-screw

Twin Screw Type : Counter-rotating conical Twin-screw

Screw Material : 38CrMoALA

Screw diameter (mm) : 80 mm

Screw L/D Ratio : 28:1

Screw Speed (rpm) : 45 rpm

Showroom Location : Turkey, Germany, Indonesia, Thailand, UAE, South Africa, Tajikistan

Place of Origin : China

Brand Name : DEERMA

Voltage : customerized

Dimension(L*W*H) : 25*5*3.5m

Power (kW) : 250

Weight : 12000 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Applicable Industries : Building Material Shops, Manufacturing Plant

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, Gear, PLC, Engine, Gearbox

Machinery Test Report : Provided

Machine Name : PVC hollow wave roof tile manufacturer machine / making machine

Raw material : PVC Powder

Product Type : Roof Tile

Motor : SIEMENS Brand

Inverter : ABB Frequency Controller

Contactor : France SCHNEIDER Contactors

Temperature controller : Omron Brand

Automatic Grade : Automatic

PVC Hollow Roof : Width:832mm; Thickness: 11.8mm

Output (kg/h) : 350 - 400 kg/h

Marketing Type : Hot Product 2019

Packaging Details : Wood case with plastic film

Port : Qingdao

Supply Ability : 3 Set/Sets per Month

MOQ : 2 sets

Price : $110,000.00/sets >=2 sets

Contact Now

PVC hollow wave roof tile manufacturer machine / making machine

Product Description

Product Application

Machine name: Plastic PVC Hollow Roof Tile Making machine
Finshed product : Plastic Hollow roofing , PVC composite roofing , Plastic corrugated roofing, Double Wall roofing

Product application: Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation

Product features:
PVC+ASA glazed/corrugated hollow composite resin tile should be the IDEAL REPLACEMENT of conventional asbestos and metal G.I. sheets which are not resistant to corrosion and weather under the high cost and short service life.
This new PVC composite roof tile production adopted advanced multilayer CO-EXTRUSION technology which well combine the different functions of raw materials(PVC+ASA) so that the tile can be anti-corrosive, fire retardant, eco-friendly, more durable, tenacious, easy to install and move, light weight as well as cost effective in installation (as less steel and less overlap), as per the efficiency and benefits it provides.
Apart from its numerous benefits, its salient features include heat insulation up to 35% (highly energy efficient) and it can withstand temperature up to 70 degrees Celsius to - 40 degrees Celsius which is very much suitable for YOUR MARKET.

Machine List
No.	Name	Qty.	Remark
1	Screw loader for SJZ 80/156 extruder	1
2	SJZ 80/156 conical twin-screw extruder	1	For the PVC layer
3	Vacuum loader for SJ50 extruder	1
4	Drying hopper for SJ50 extruder	1
5	SJ50/30 single screw extruder(ASA)	1	For the ASA layer
6	Mould unit	1
7	Distributor	1
8	Forming table and calibration mould	1
9	Haul off unit	1
10	Cutter	1
11	Stacker	1

1. SJSZ-80/156 conical twin screw extruder with Automatic Feeding system

2. PVC Hollow Roof Mould

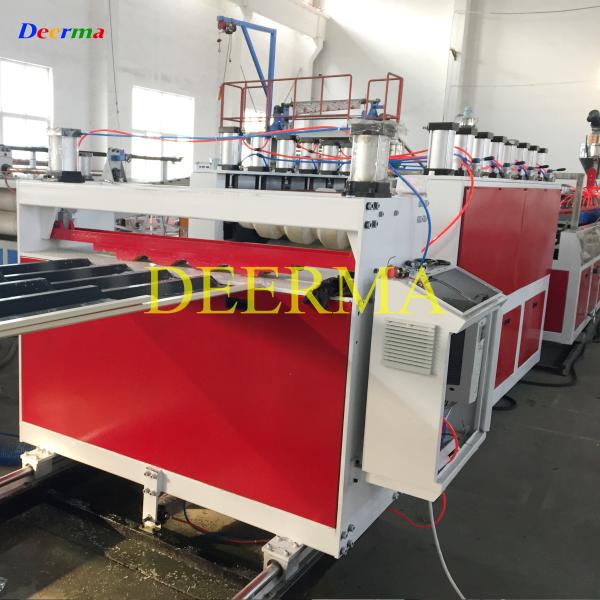

3.Vacuum calibration platform

4. Haul- off Machine & cutter machine

Auxiliary Machine
12	Crusher	1	Power:11kw,22kw,30kw
13	Pulverizer	1	Power:45kw,55kw,75kw
14	SRL-Z300/600 Mixer unit	1	Capacity : 450-550kg/h
15	Screw loader for SRL-Z 300/600 Mixer	1

ELECTRIC BRAND SHOW

Packaging & Shipping

38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor

Certifications

38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor

38CrMoALA Screw Material PVC Hollow Wave Roof Tile Production Line with SIEMENS Motor Images
